3CM-3

blog image
Automatic Packaging Machine

A versatile packaging machine for paper and plastic bags!
Compact and economical design!
Exceptionally effective for powders and granules!

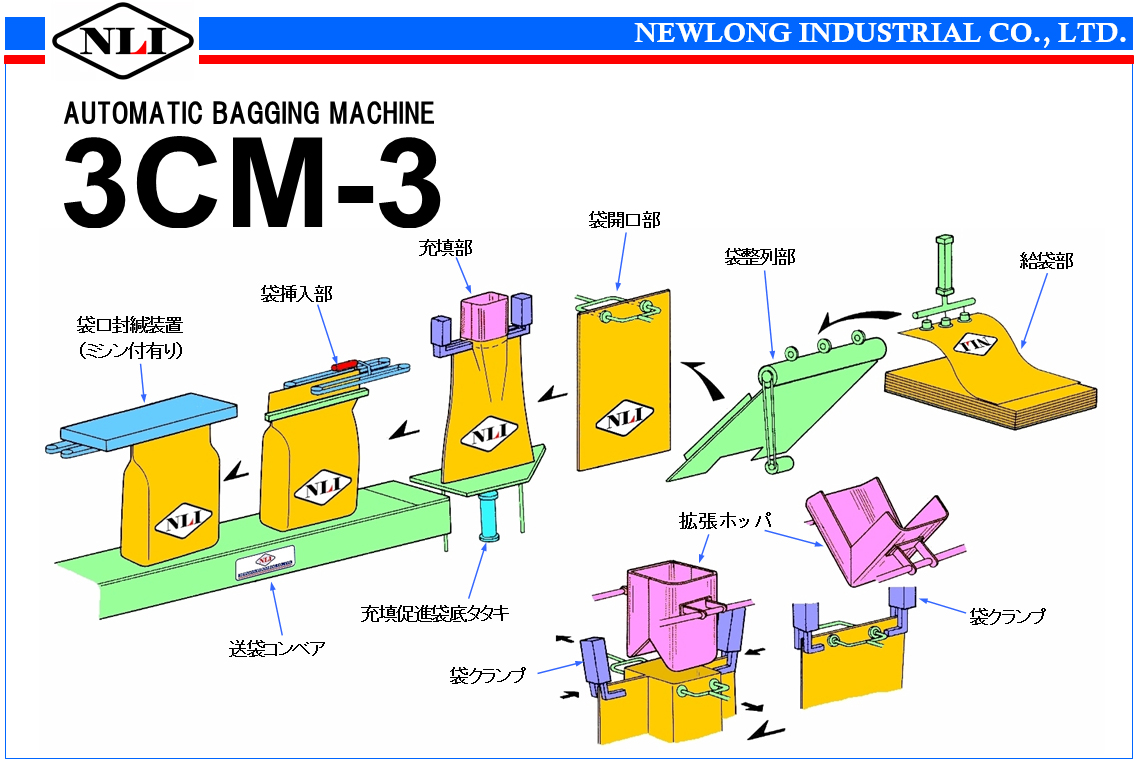

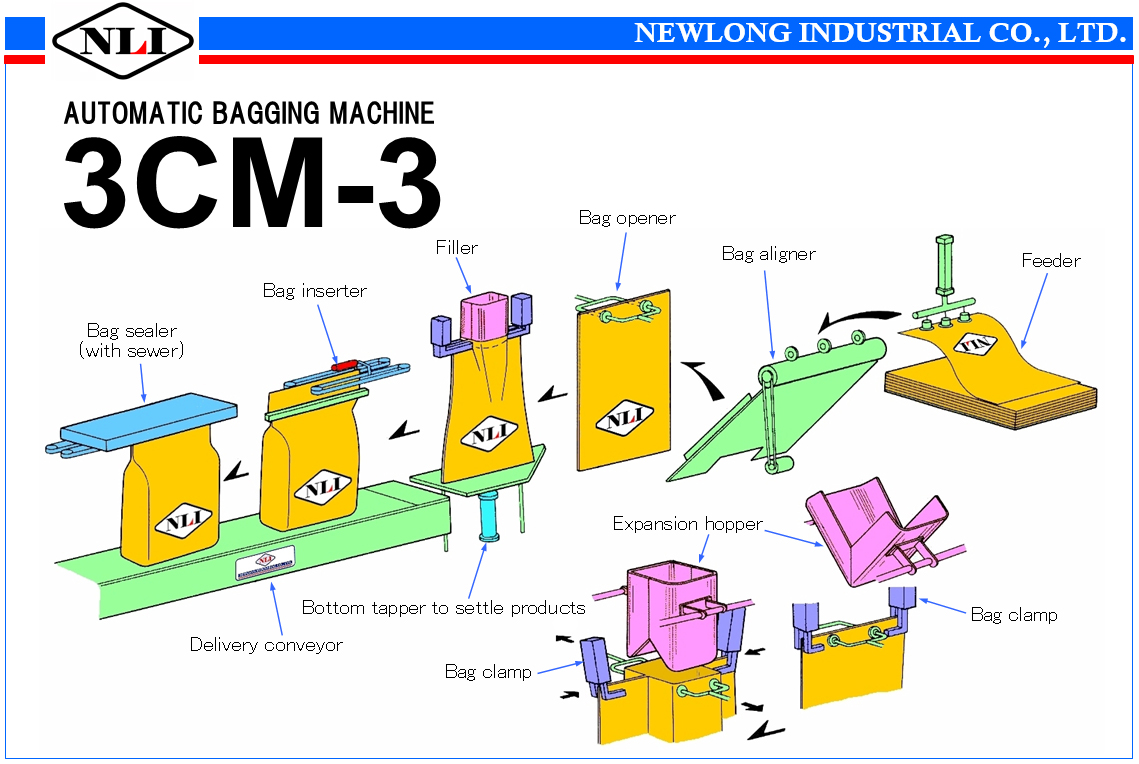

The 3CM-3 model is an automatic heavy-duty bag packaging machine that can handle various bag materials such as paper bags, single-layer poly bags, and polycloth bags. It is suitable for all types of powdered and granular fillings, and has been widely adopted and proven effective in various industries, contributing to labor savings. Furthermore, significant improvements have been made to its compactness, resulting in a more rational and economical design. In terms of workability and safety, user needs have been incorporated, leading to further upgrades.

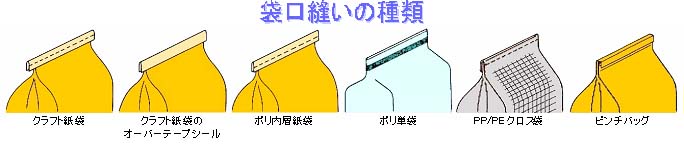

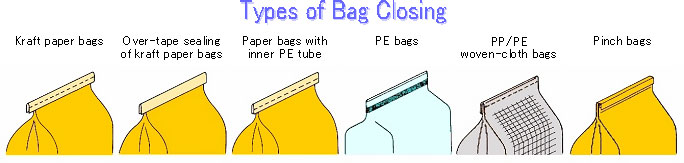

For changes in bag specifications, the bag closer device can be replaced, allowing for compatibility with a variety of bag packaging configurations. Additionally, a weighing machine set can be attached to any model.

Top ability 600 bags/hour
filling weight 20~30kg/bag
Required power 4.05kW
Bag dimensions:
Bag width (mm)
380-460
01

Specifications

Model 3CM-3
Top ability 600 bags/hour
Contents
filling weight 20~30kg/bag
Bag types Kraft paper bags,
cloth bags,
single poly bags
Bag dimensions:
Bag width (mm)
380-460For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us.
Bag dimensions:
Bag length in mm
750-950For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us.
Required air volume (0.5 MPa) 800 NL/min
Required power 4.05kW
machine weight Approximately 2.6t
02
