Automatic Packaging Machine
3CM-P
It boasts versatility, being compatible with various bag materials such as paper bags, single-layer poly bags, and polycloth bags. It is widely used in various industries that involve bagging fertilizers, feed, and resin pellets, contributing to labor savings. Based on the 3CM-P model, we have developed and serialized vibrating degassing devices (VR type) and other components to meet the diverse needs of bagging operations.
Top ability
1,200 bags/hour
filling weight
20~30kg/bag
Required power
8.0kW
Bag dimensions:
Bag width (mm) 380-460
Bag width (mm) 380-460
01
Specifications
| Model | 3CM-P |
|---|---|
| Top ability | 1,200 bags/hour |
| Contents | |
| filling weight | 20~30kg/bag |
| Bag types | Kraft paper bags, cloth bags, single poly bags |
| Bag dimensions: Bag width (mm) |
380-460For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us. |
| Bag dimensions: Bag length in mm |
750-950For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us. |
| Required air volume (0.5 MPa) | 2,000 NL/min |
| Required power | 8.0kW |
| machine weight | Approximately 4.0 tons |
02
Related Images

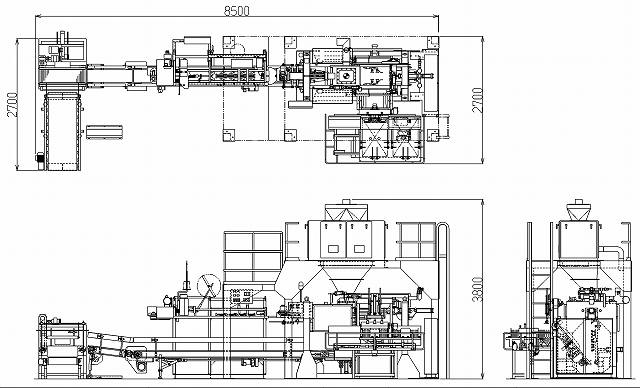

![[3CM-P] External Dimensions Diagram](https://cms.nlindustrial.co.id/storage/3cm-p-3cm-p-external-dimensions-diagram.jpg)
![[3CM-PS] Illustrated English](https://cms.nlindustrial.co.id/storage/3cm-p-3cm-ps-illustrated-english.jpg)

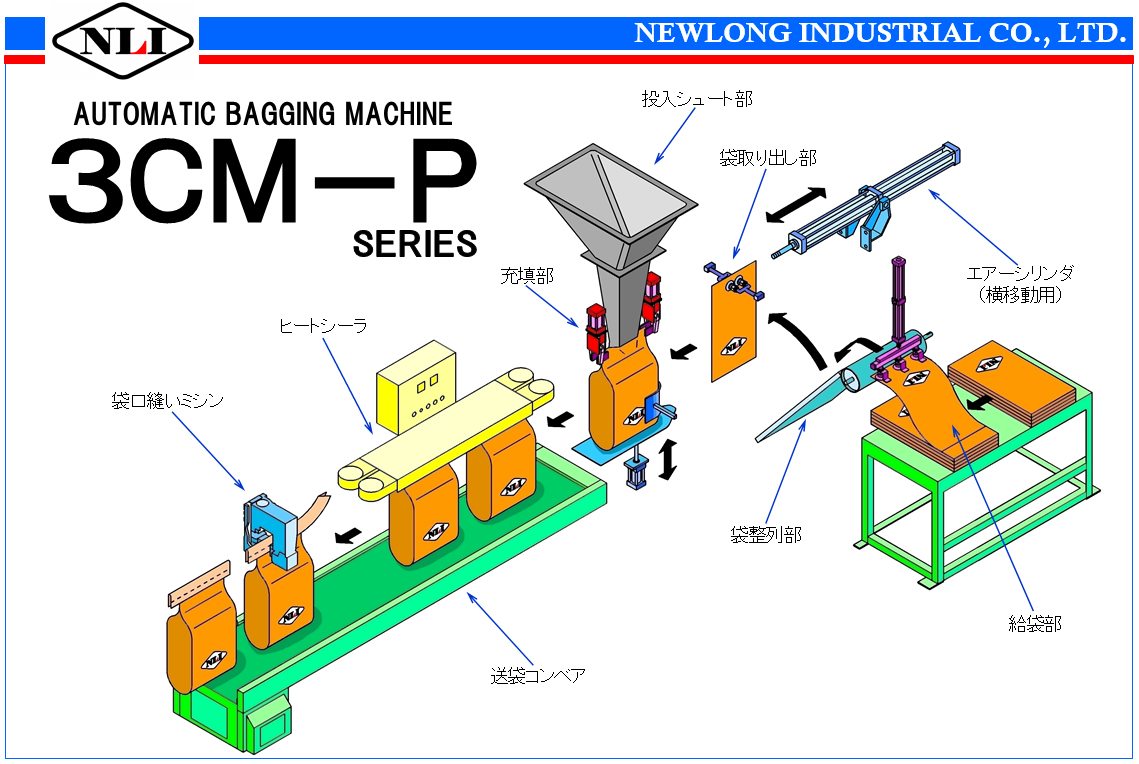

![[3CM-PS] Illustration in Japanese](https://cms.nlindustrial.co.id/storage/3cm-p-3cm-ps-illustration-in-japanese.jpg)
![[3CM-PS] Conveyor VR Equipment Unit](https://cms.nlindustrial.co.id/storage/3cm-p-3cm-ps-conveyor-vr-equipment-unit.jpg)
![[3CM-PS] Control panel, filling unit, and bag dispensing unit](https://cms.nlindustrial.co.id/storage/3cm-p-3cm-ps-control-panel-filling-unit-and-bag-dispensing-unit.jpg)
