Automatic Packaging Machine

The 3CM-P series high-speed model fills two bags simultaneously.

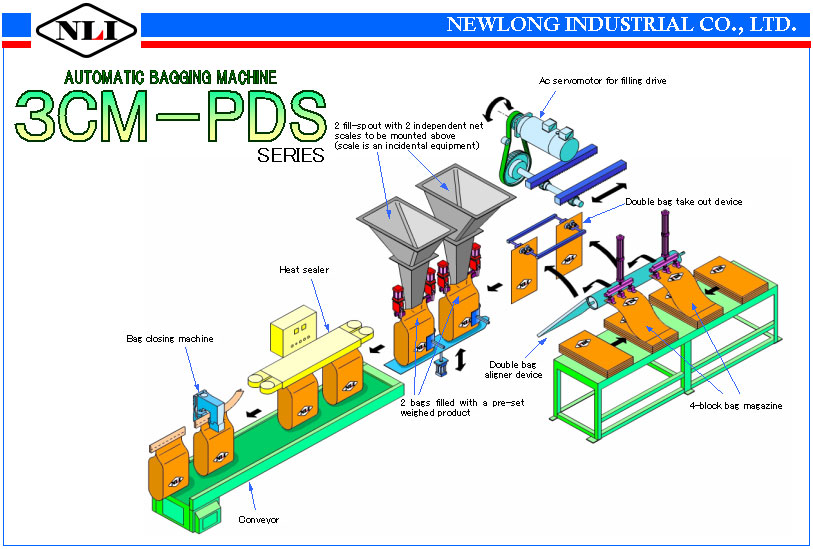

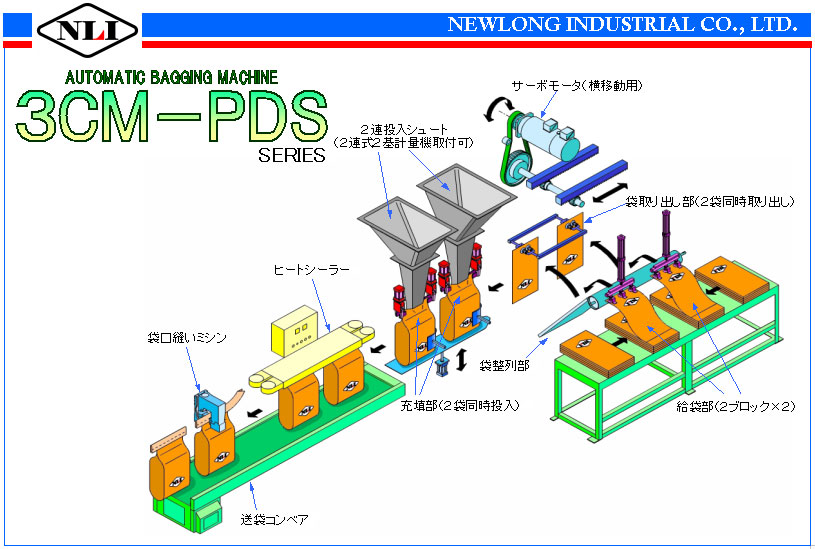

Developed as a high-speed model in the 3CM-P series, it boasts the characteristic of "simultaneous filling of two bags." It has two sets each of bag feeding, bag clamping, and filling chutes, and works in conjunction with one set of bag closers to achieve a high capacity of 2000 bags/hour. The high speed of this machine allows for consolidation of existing equipment into the 3CM-PDS, improving operational efficiency and enabling the realization of a state-of-the-art integrated workflow.

Top ability 2,000/1,800 bags/hour
filling weight 20~30kg/bag
Required power 21.0/16.0kW
Bag dimensions:
Bag width (mm)
380-460
01

Specifications

Model 3CM-PDS/3CM-PD*
Top ability 2,000/1,800 bags/hour
Contents
filling weight 20~30kg/bag
Bag types
Bag dimensions:
Bag width (mm)
380-460For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us.
Bag dimensions:
Bag length in mm
750-950For use with various types of bags, special bags, or if the outer bag dimensions or weight settings are different from those listed above, please contact us.
Required air volume (0.5 MPa) 2,000/3,000 NL/min
Required power 21.0/16.0kW

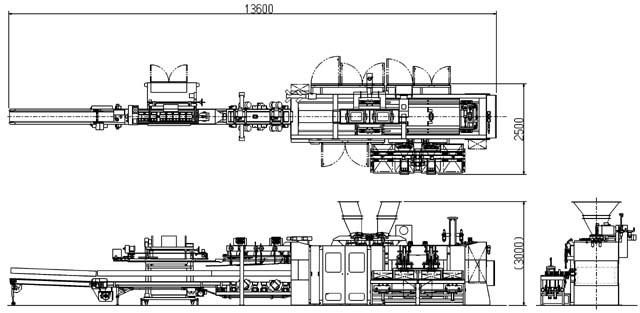

machine weight Approximately 6.0 tons
02
