Foam-feel-seal bag-making, filling, and sealing machine
(high-speed type)
The EFS-22 is a state-of-the-art roll-tube type automatic bag-making and packaging machine that utilizes the latest technology to compactly integrate the processes of bag making, product filling, bag sealing, and cooling.
Key Features
Feature 01
PE gusset film bag making and filling system
Feature 02
Adjustments to sealing temperature, sealing time, and cutting length settings are all performed using the graphic panel. The graphic panel includes an operation monitor, various settings screens, a fault indicator screen, and a sequencer I/O monitor display, and controls all aspects of operation.
Feature 03
By attaching a chute with high filling efficiency, high-speed operation at approximately 30 bags (25 kg of resin) per minute is possible.
Specifications
| Model | EFS-22 |
|---|---|
| Top ability | 1,850 bags/hourThis may vary depending on the contents and usage environment. |
| Contents | Grain pellets |
| filling weight | 20~30kg/bag |
| Bag types | Gusseted roll tube |
| Bag dimensions: Bag width (mm) |
380-460Please contact us if you require bag dimensions other than those listed above. |
| Bag dimensions: Bag length (mm) |
750-950Please contact us if you require bag dimensions other than those listed above. |
| Required air volume (0.5 MPa) |
1,700 NL/min |
| Required power | 24.0kW |
| machine weight | Approximately 6.0 tons |
Related Images

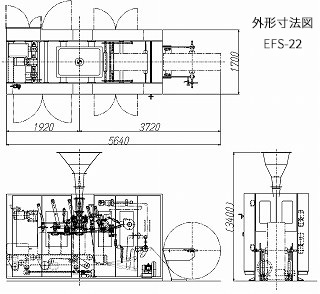

![[EFS-22] External Dimensions Diagram](https://cms.nlindustrial.co.id/storage/efs-11-efs-22-external-dimensions-diagram.jpg)

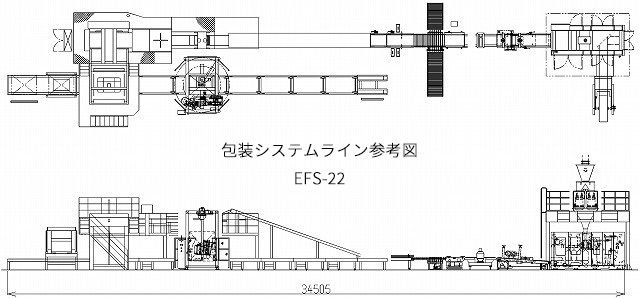

![[EFS-22] Packaging System Line Reference Diagram](https://cms.nlindustrial.co.id/storage/efs-11-efs-22-packaging-system-line-reference-diagram.jpg)

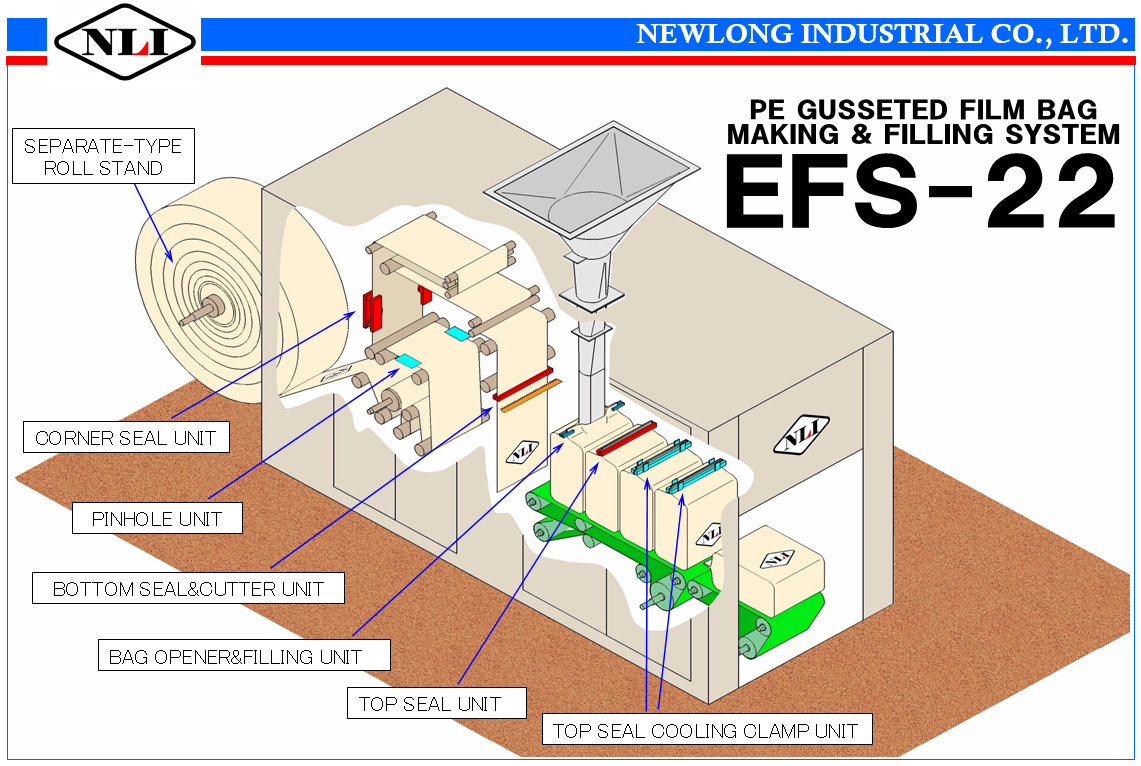

![[EFS-22] Illustrated English](https://cms.nlindustrial.co.id/storage/efs-11-efs-22-illustrated-english.jpg)

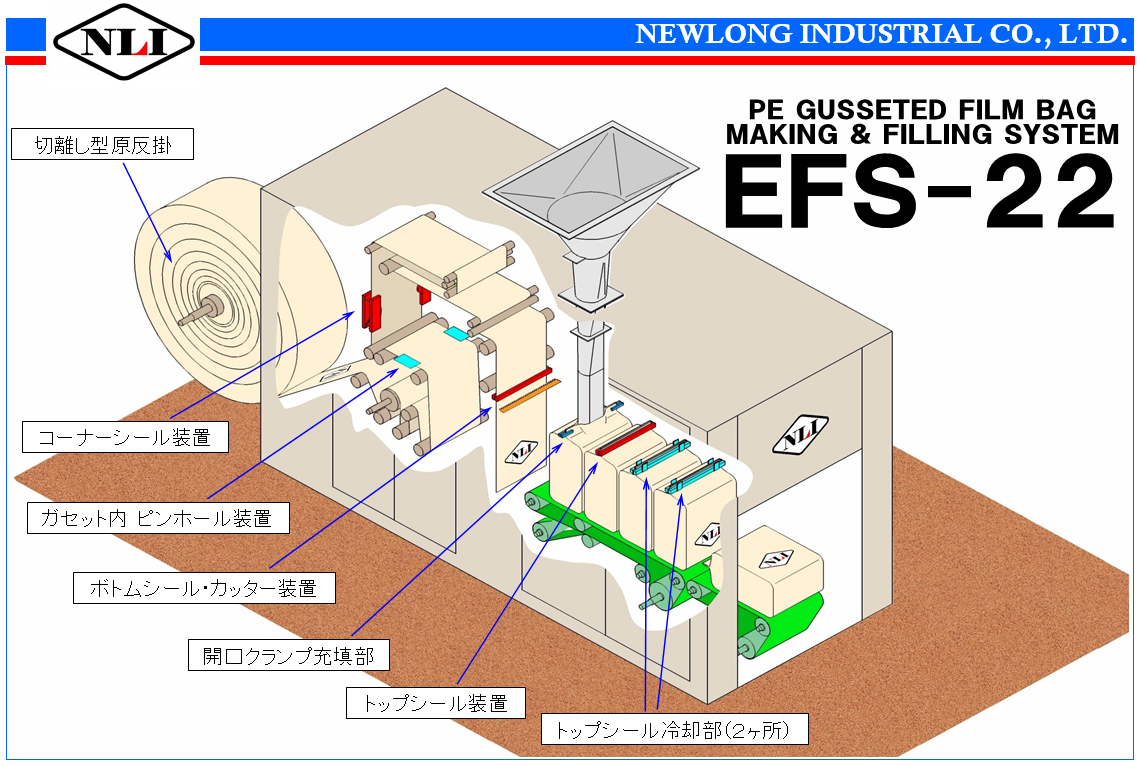

![[EFS-22] Illustration in Japanese](https://cms.nlindustrial.co.id/storage/efs-11-efs-22-illustration-in-japanese.jpg)
